Presentation
| Product range | FNB48P |
| Product type | Voltage Tester |
Sale package
| Pack | Blister |
| Content | Voltage Tester |
| Product status | New |

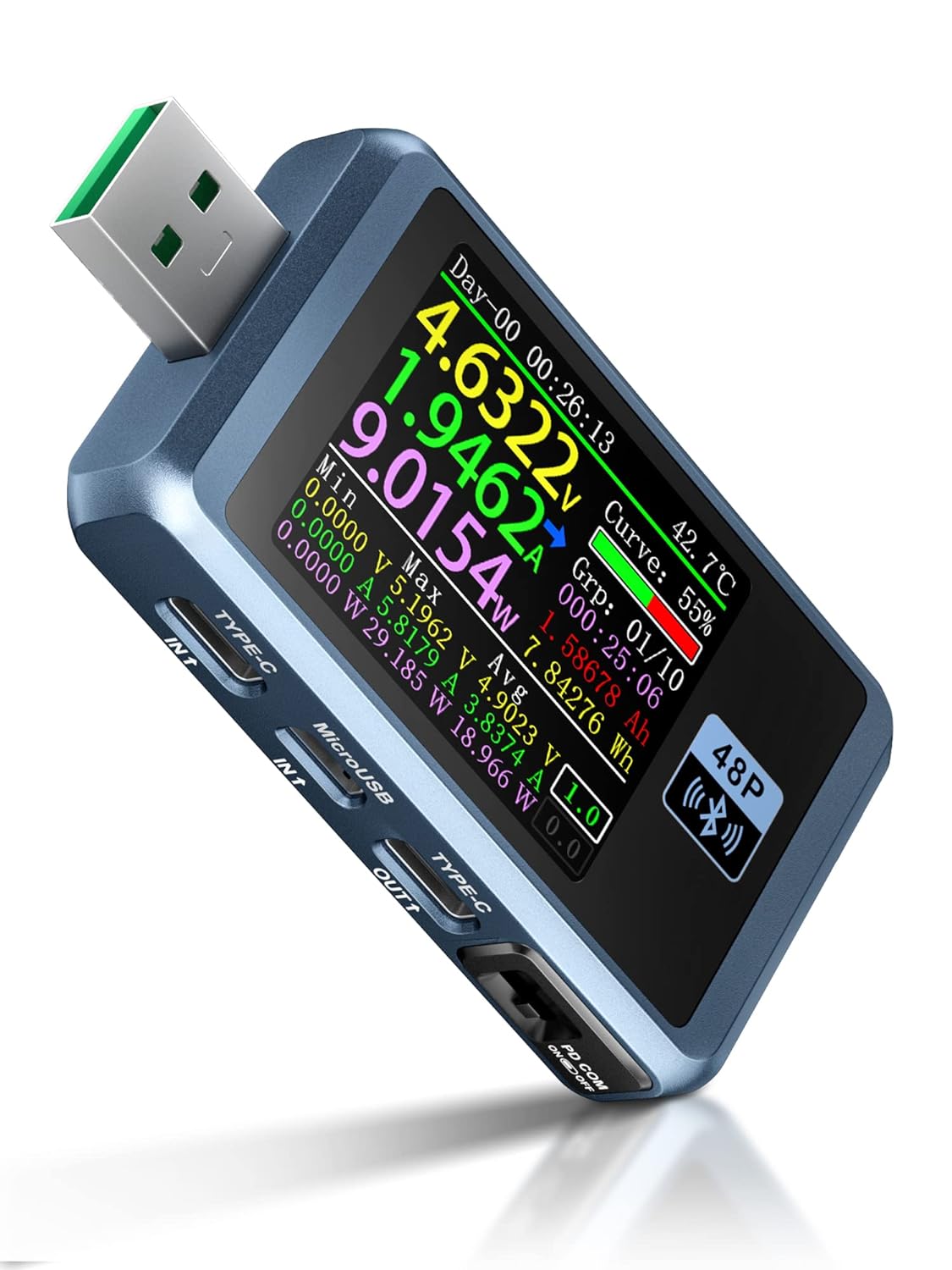

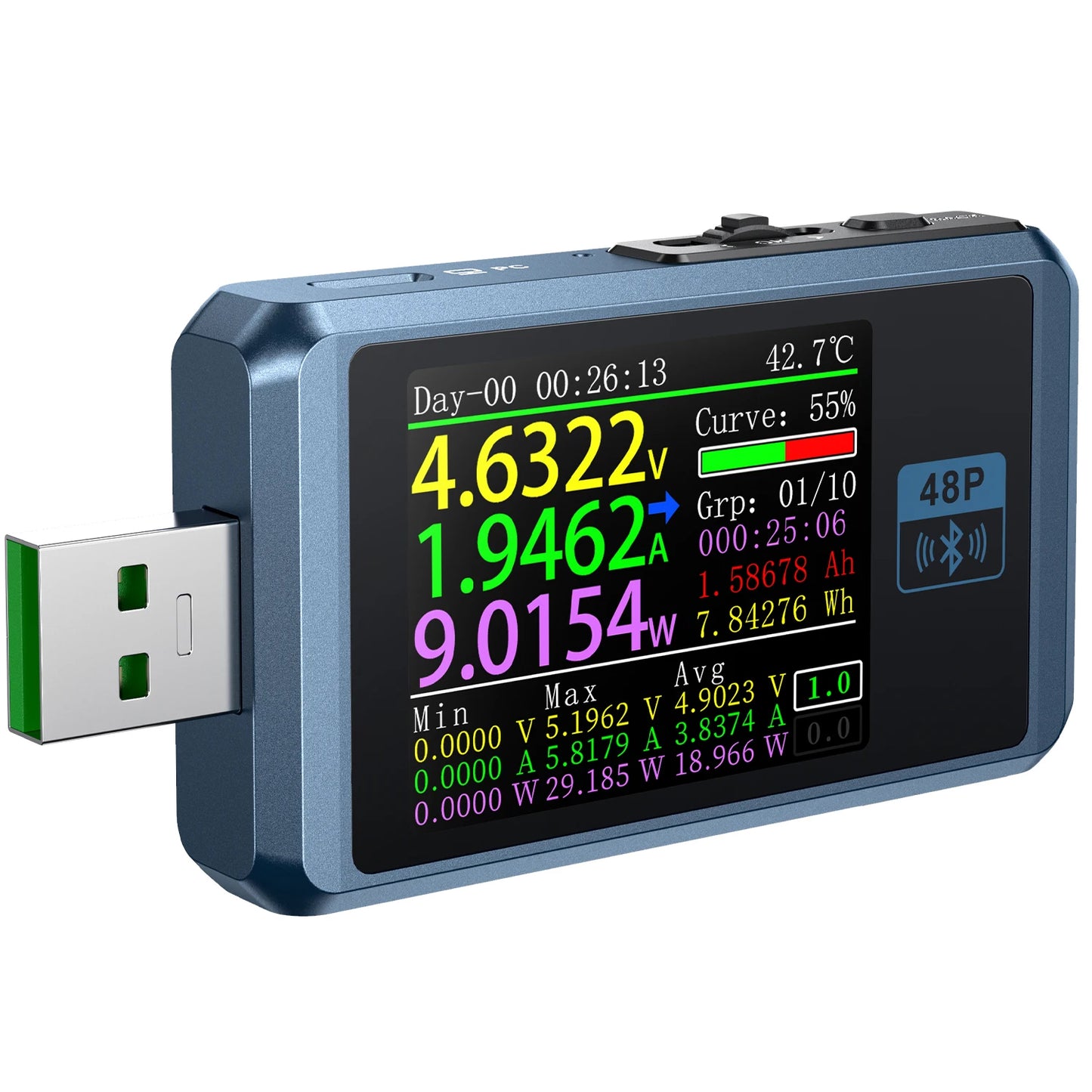

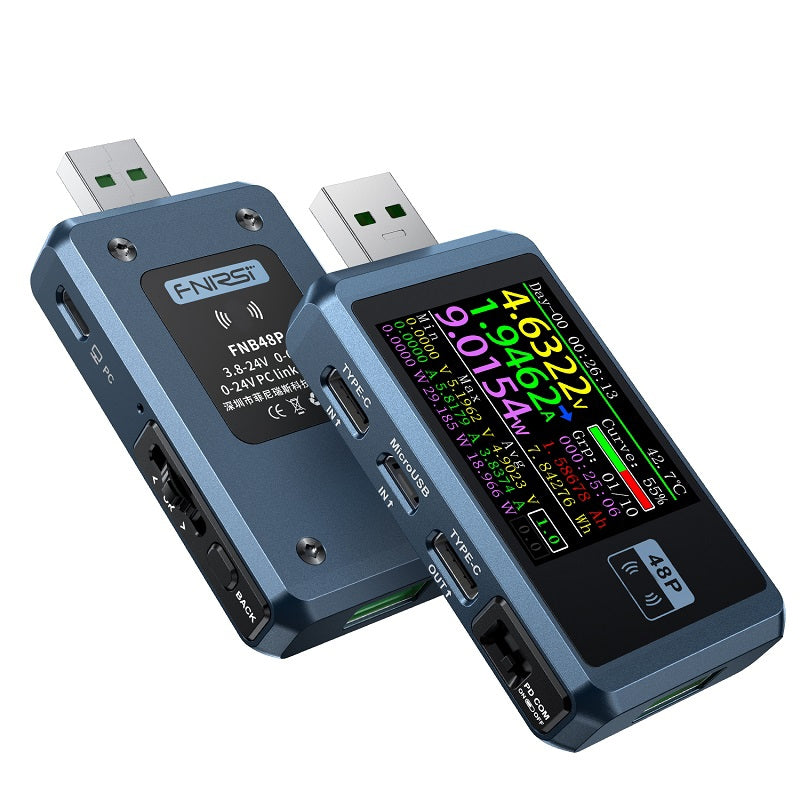

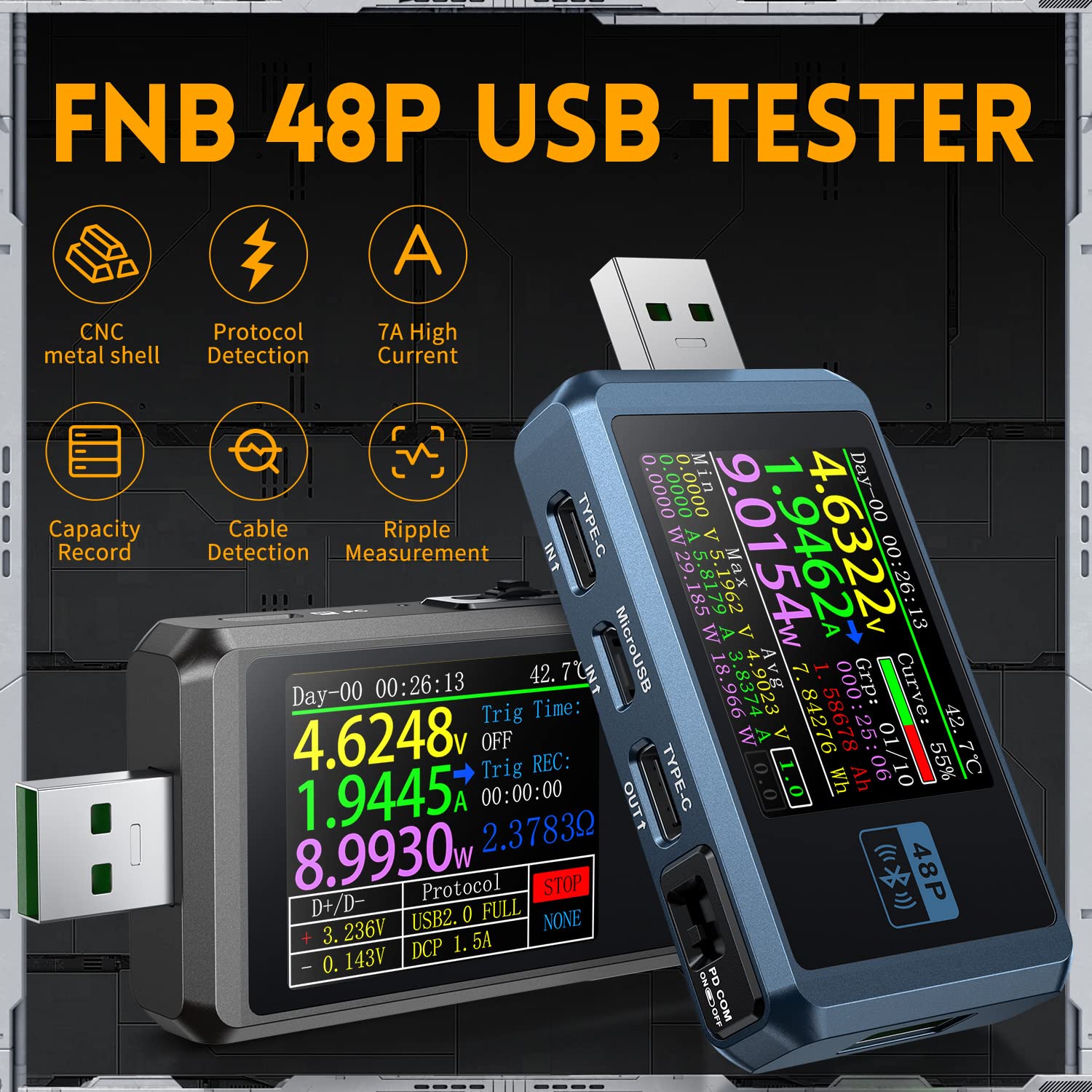

Fnirsi FNB48P Voltage Tester
The Fnirsi FNB48P voltage tester is an advanced monitoring tool designed to meet the demands of professionals.
With its ability to monitor a wide range of parameters and detect multiple fast charging protocols,
this tester is indispensable in the process of diagnosing and optimizing the charging of mobile devices.

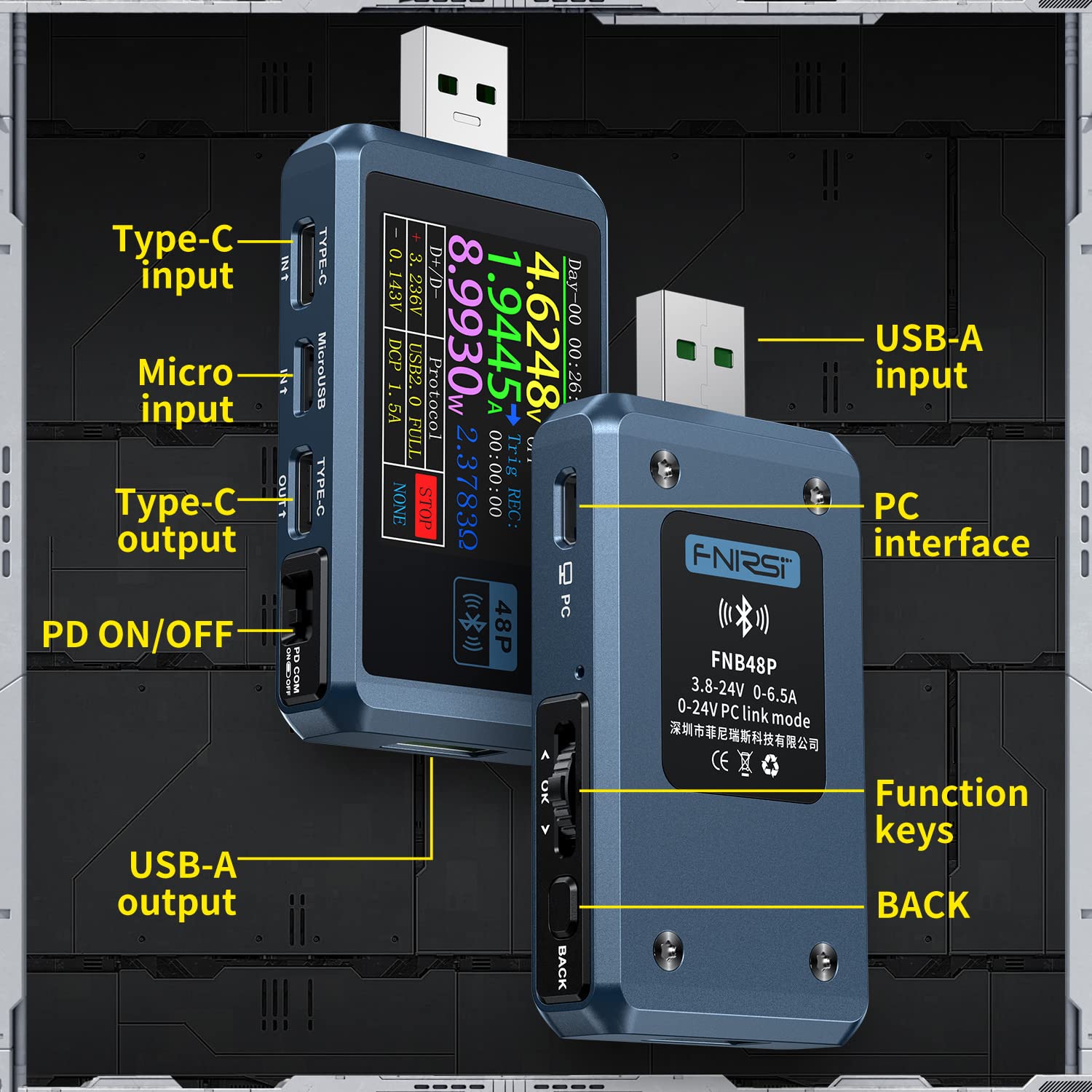

With a current capacity of 6.5A and compatibility with multiple ports, this tester can handle various devices and fast charging protocols.
Multiple Functions

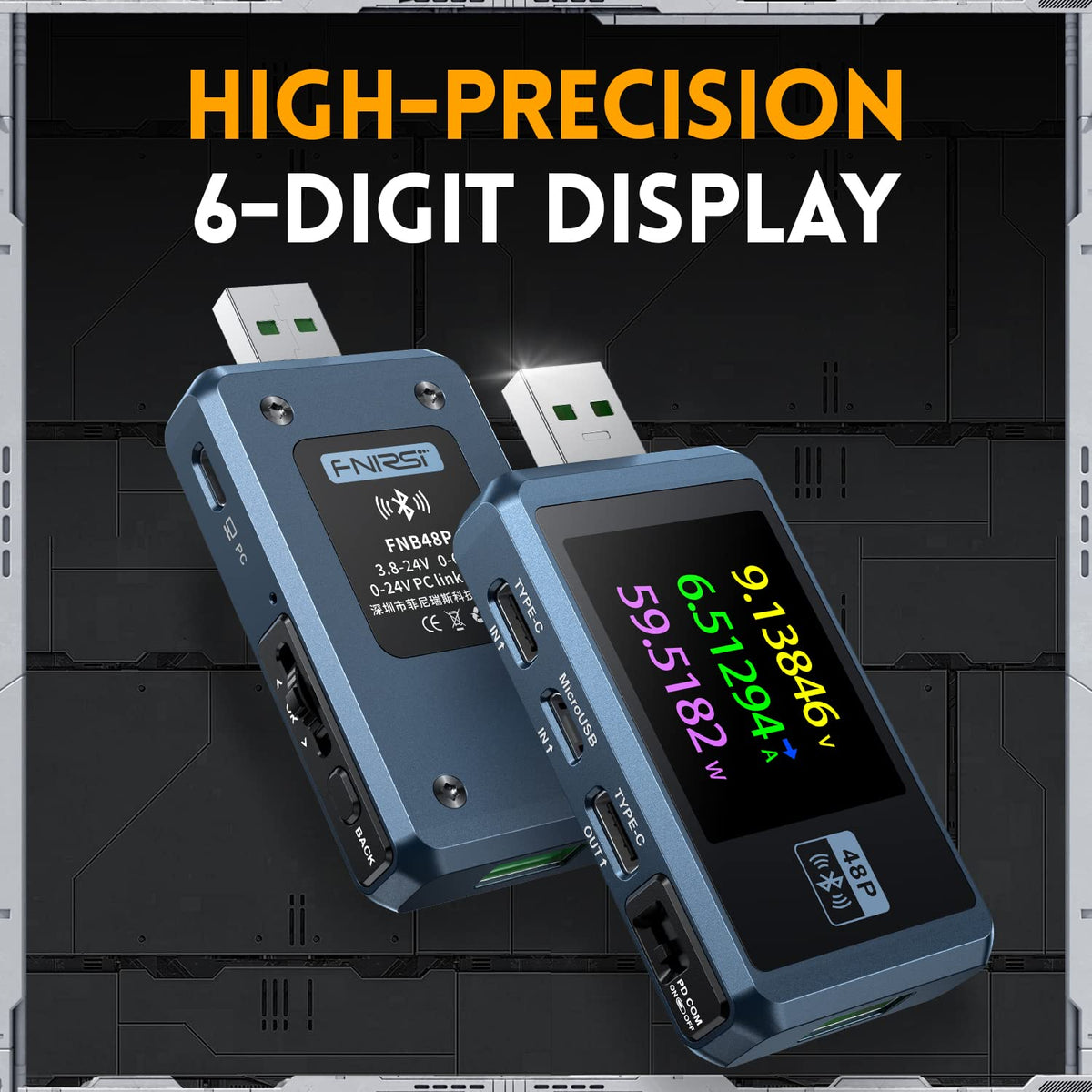

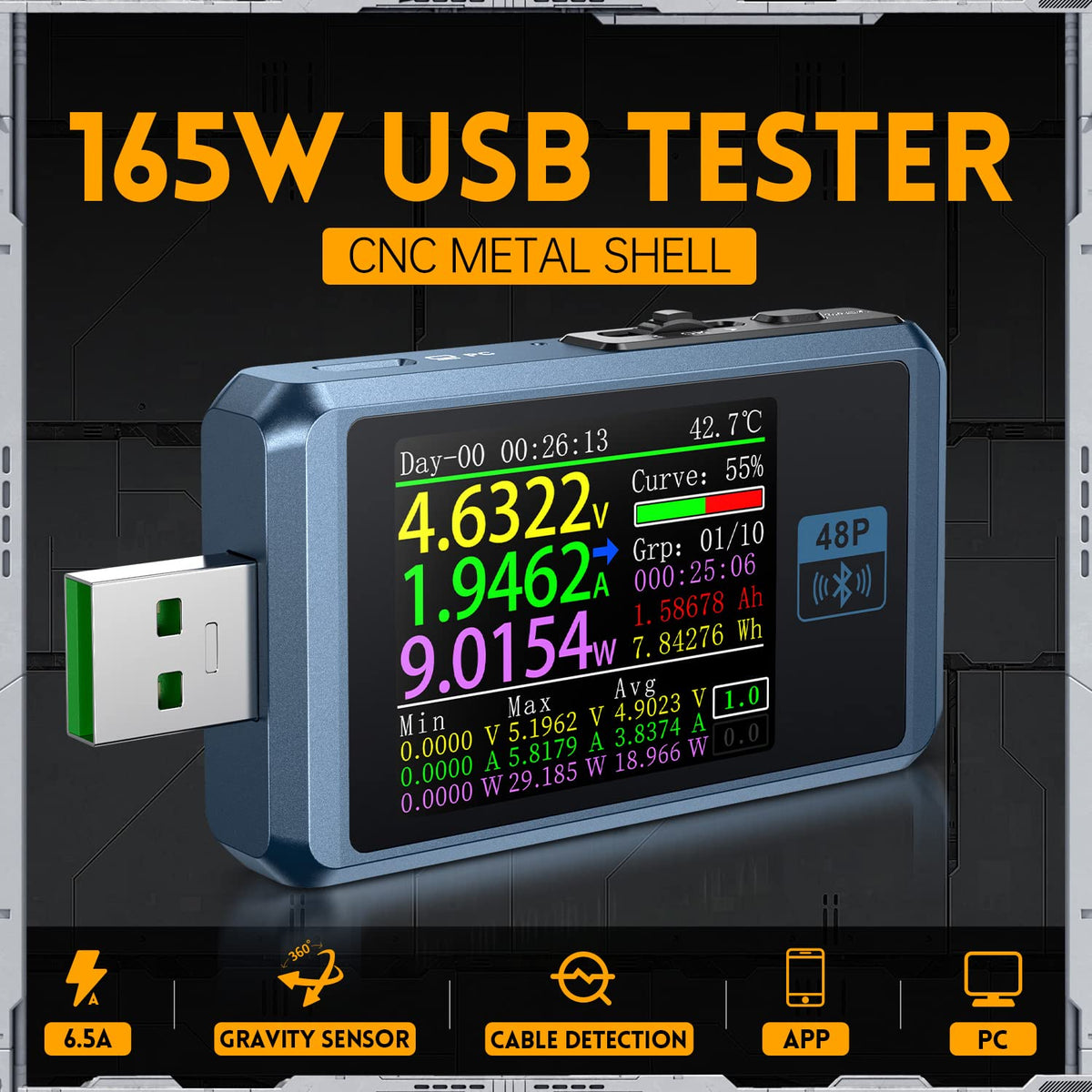

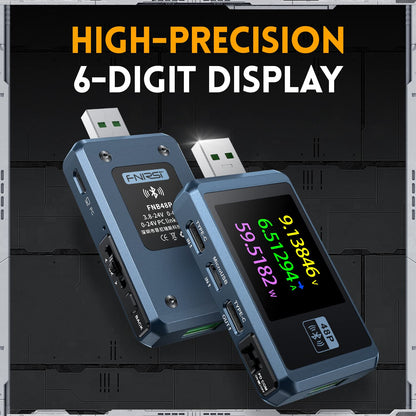

Its robust design, made from CNC machined metal, provides increased durability, while the 1.77-inch high-definition screen offers a clear view of the data.
The real-time monitoring function allows detection of subtle changes in voltage, current, and power during charging.
The three major cable detection functions ensure detailed analysis of connection data.
Equipped with a high-performance MCU and a 16-bit external PD ADC chip, this tester delivers reliable and accurate performance.
It is also compatible with a personal computer and can synchronize data via a Bluetooth application,
offering a high degree of flexibility and control.

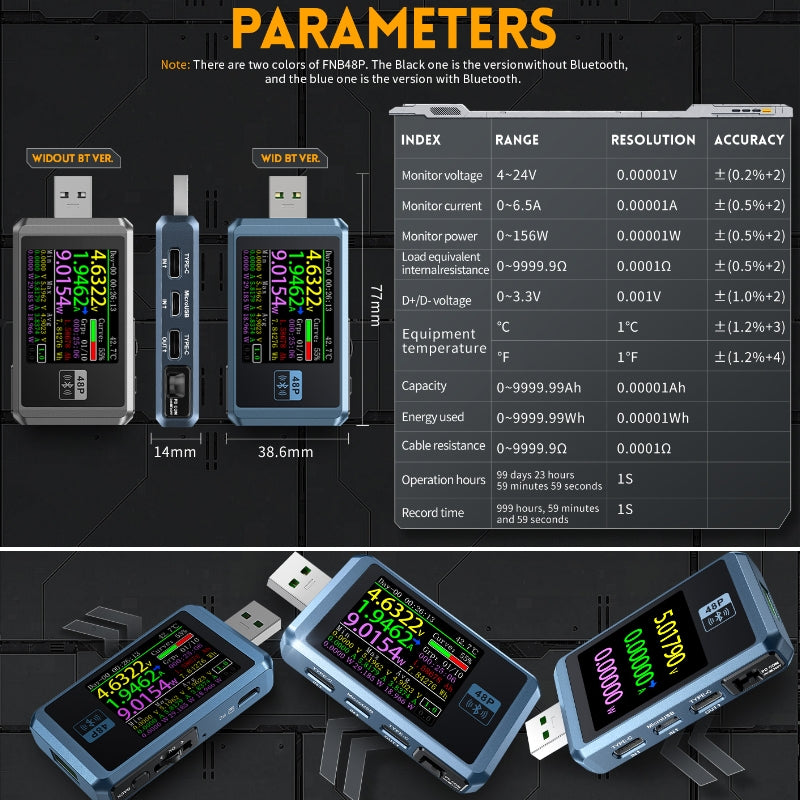

Features:
- Voltage monitoring: 4-24V
- Current monitoring: 0-6.5A
- Power monitoring: 0-156W
- Equivalent internal load resistance: 0-9999.9 ohms
- D+/D- voltage: 0-3.3V
- Capacity: 0-9999.99Ah
- Energy consumption: 0-9999.99Wh
- Cable internal resistance: 0-999.9 ohms
- Dimensions: 77 x 14 x 38.6 cm
- Maximum current: 6.5A
- Protocol detection: For Apple 2.4A, QC2.0, QC3.0, PD
For Samsung AFC
For HUAWEI SCP
For OPPO VOOC, DASH, WARP, SuperVOOC, MTK-PE
- Display: 1.77 inch
- Real-time monitoring of subtle changes in voltage, current, and power during charging
